Nebula Carina 4x4 Motorhome

Go further, live better: a fully self-contained 4x4 motorhome built on a Ford Ranger chassis for New Zealand roads, from gravel tracks to alpine passes, with finance available and no obligation.

A Ford F-150 truck modified to pull a camper that has a streamlined, self-contained living space on the back.

Your Waikato Nebula Carina Dealer

The Nebula Carina is built by Essence RV to go where most motorhomes can't. Underneath it's a Ford Ranger 4x4, and inside you get a proper kitchen, a heated bathroom and a comfortable over-cab bed, so a rough road in doesn't mean roughing it once you're there.

4Guys Autobarn has been looking after Hamilton and Waikato drivers for over 35 years, and we're proud to be a Nebula Carina dealer. Come and see one in person at 20 Arthur Porter Drive, Hamilton, open 7 days, or read on for the full specs, options and warranty details. You can also learn more about 4Guys Autobarn.

Why Choose the Nebula Carina?

Built On a Ford Ranger 4x4

Hi/low range, diff lock and reinforced suspension with electronic stability control, on a chassis upgraded to a 3500kg GVM for real payload capacity.

Genuine Days Off-Grid

Certified self-contained with fresh and grey water tanks, a Thetford cassette toilet and a Truma diesel heating and hot water system, so you're not tied to a powered site.

Lithium Power & Solar

A 200Ah lithium battery, 2000W inverter and 400W of solar keep lights, USB points and appliances running without needing a powered site.

$

Finance Available

Spread the cost with finance through our lending partners, with no obligation to proceed once you've seen your options.

Enquire Now View Current Stock Call (07) 849 0083

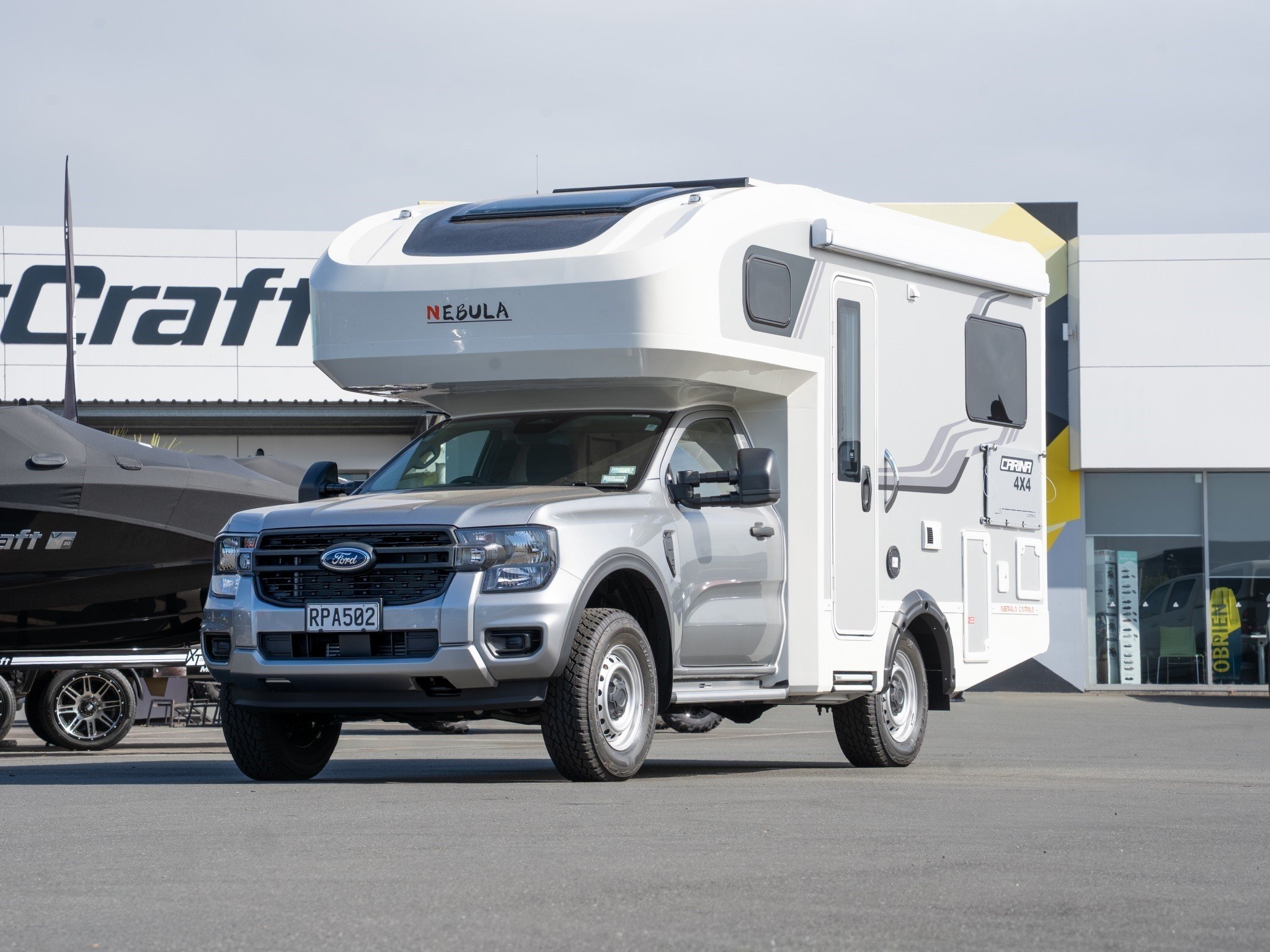

A white motorhome labeled Nebula in a parking lot, with a gray Ford truck attached. The motorhome has windows and compartments, and there are boats and other vehicles nearby. A building with a sign that says Crafts is in the background.

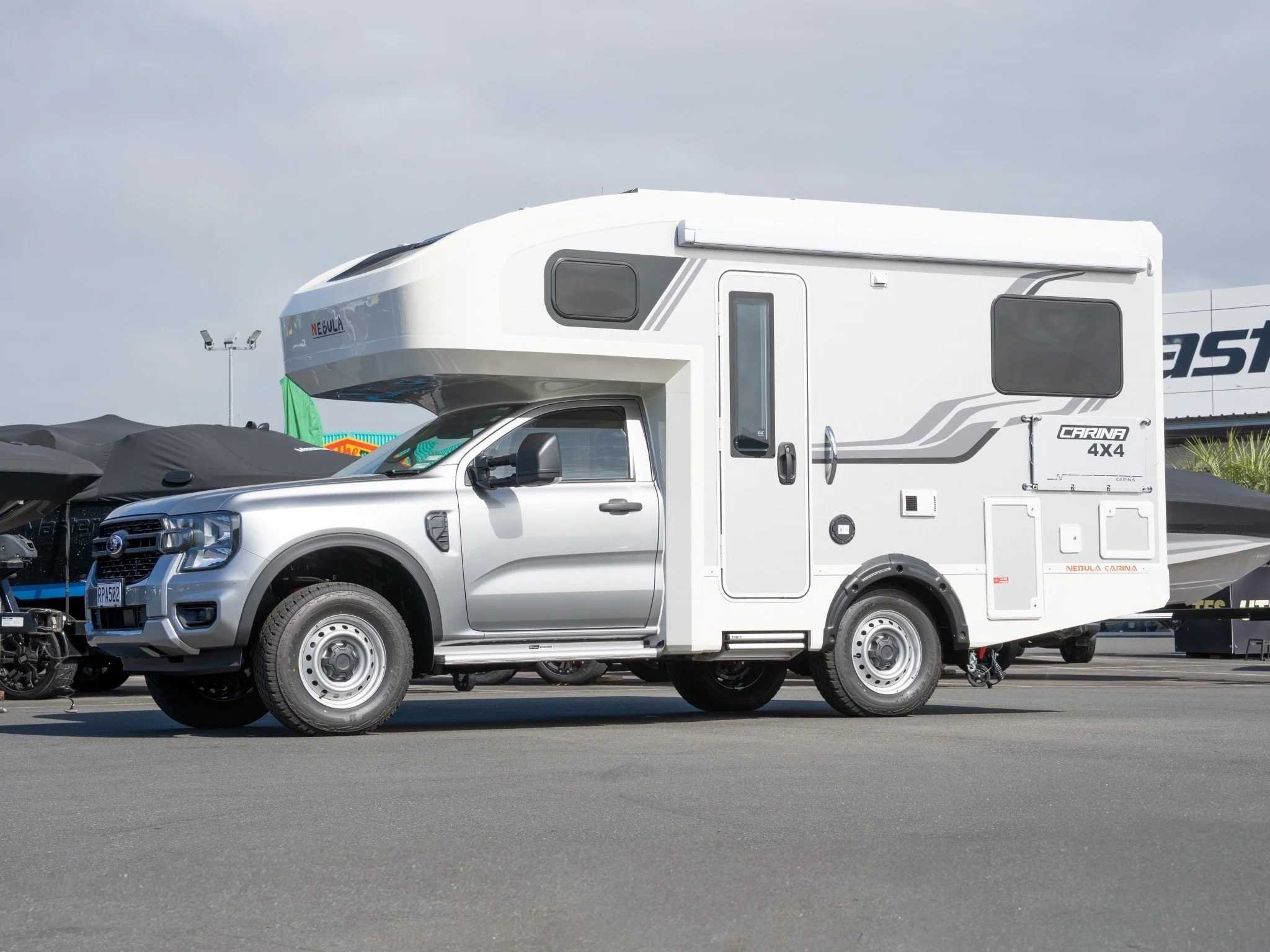

Silver Ford pickup truck towing a white caravan RV with gray and black accents parked in an outdoor lot on a cloudy day.
Silver pickup truck with a white camper labeled 'Nebula' attached to the back, parked in a lot with other vehicles and a building in the background.
A white camper van labeled 'Nebula' parked in a lot with other vehicles and trees in the background.

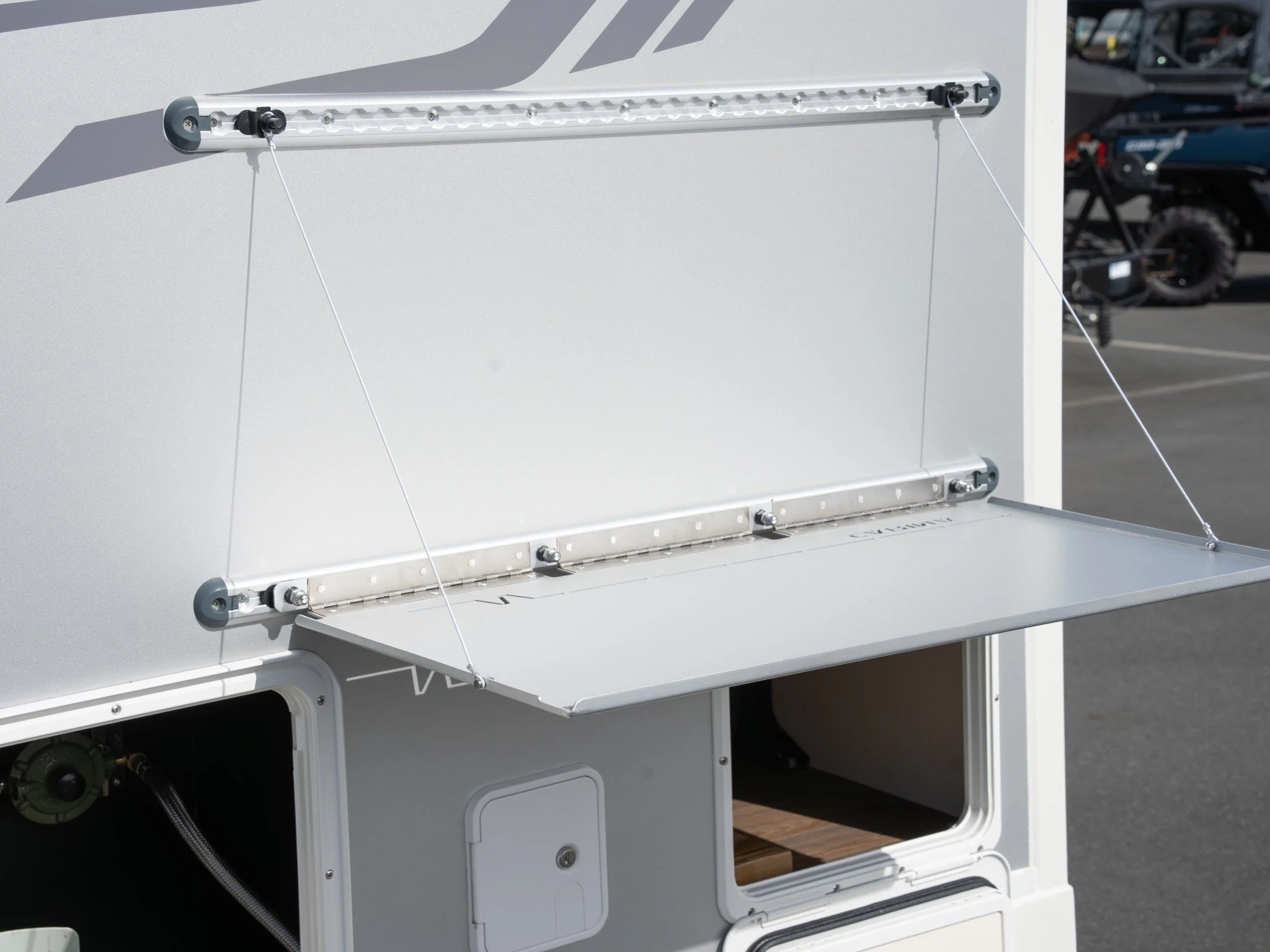

Close-up of a white outdoor cabinet with a fold-down door, metal hinges, and utility wires attached to its side, situated in a parking lot with vehicles in the background.

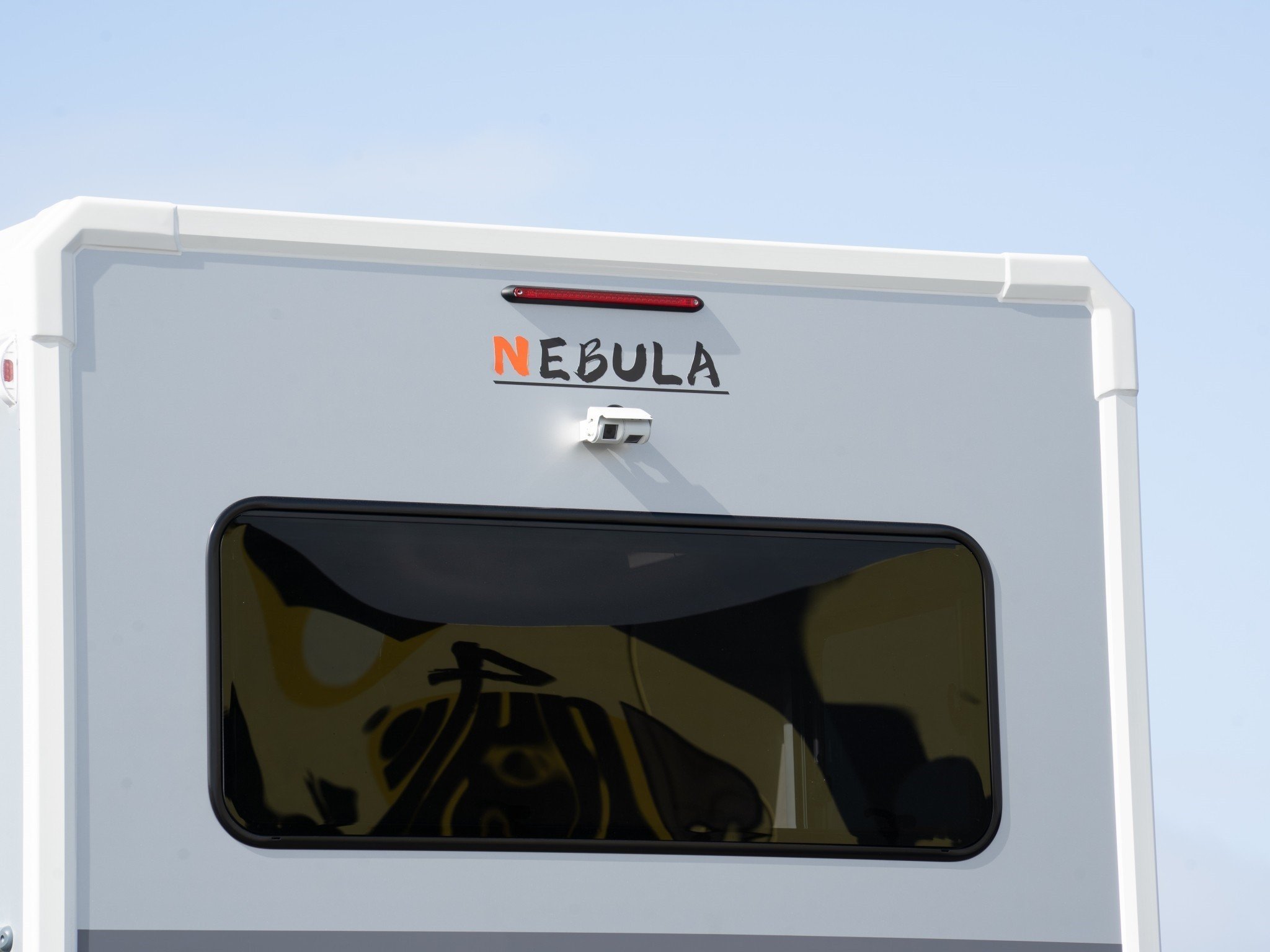

Close-up of the rear of a white vehicle with a sign that says "Nebula" and a graphic of a yellow nebula inside a black screen, set against a clear blue sky.

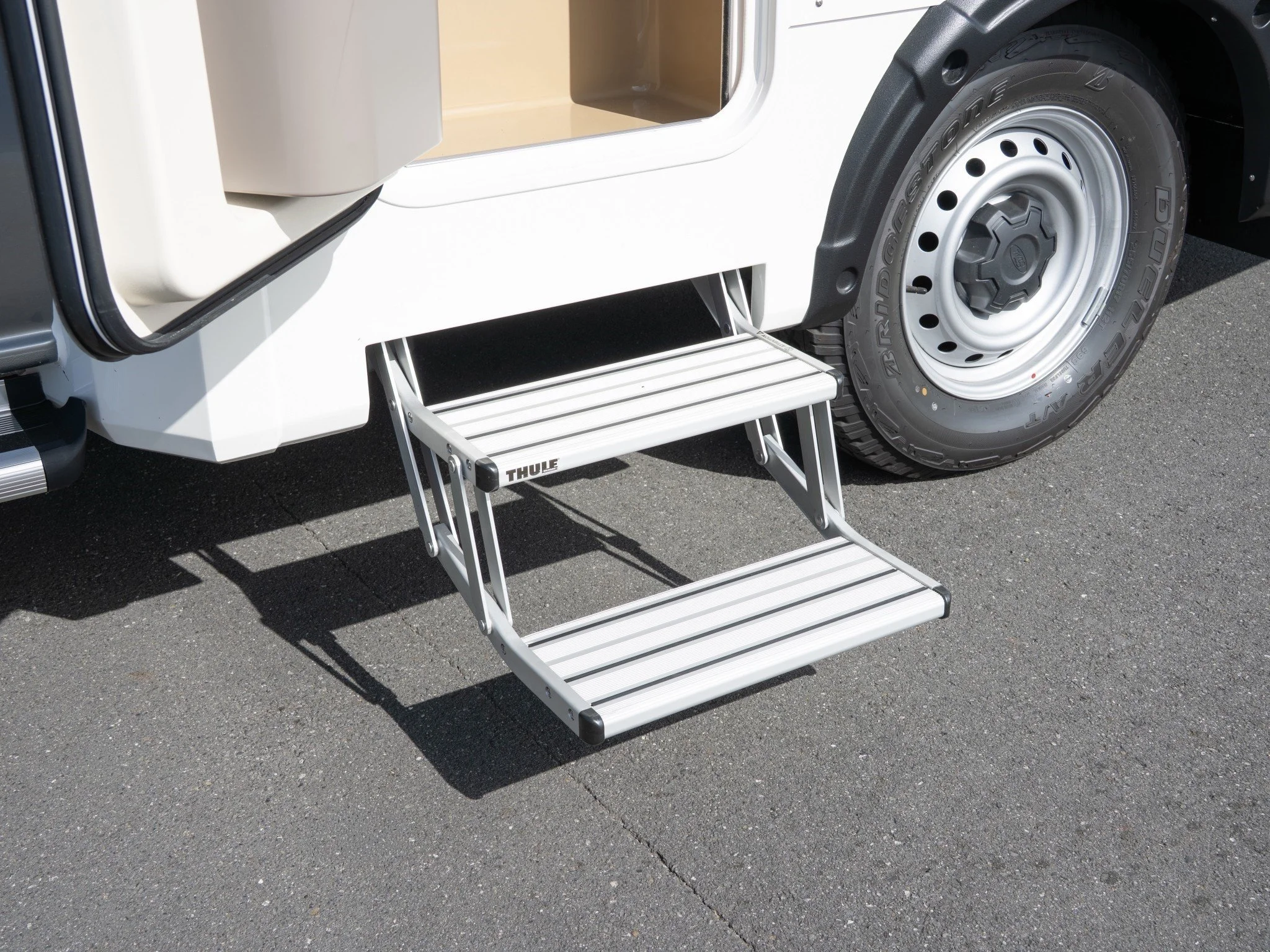

Close-up of a large tire and a vehicle step with a foldable metal ladder positioned outside a white truck with an open door.

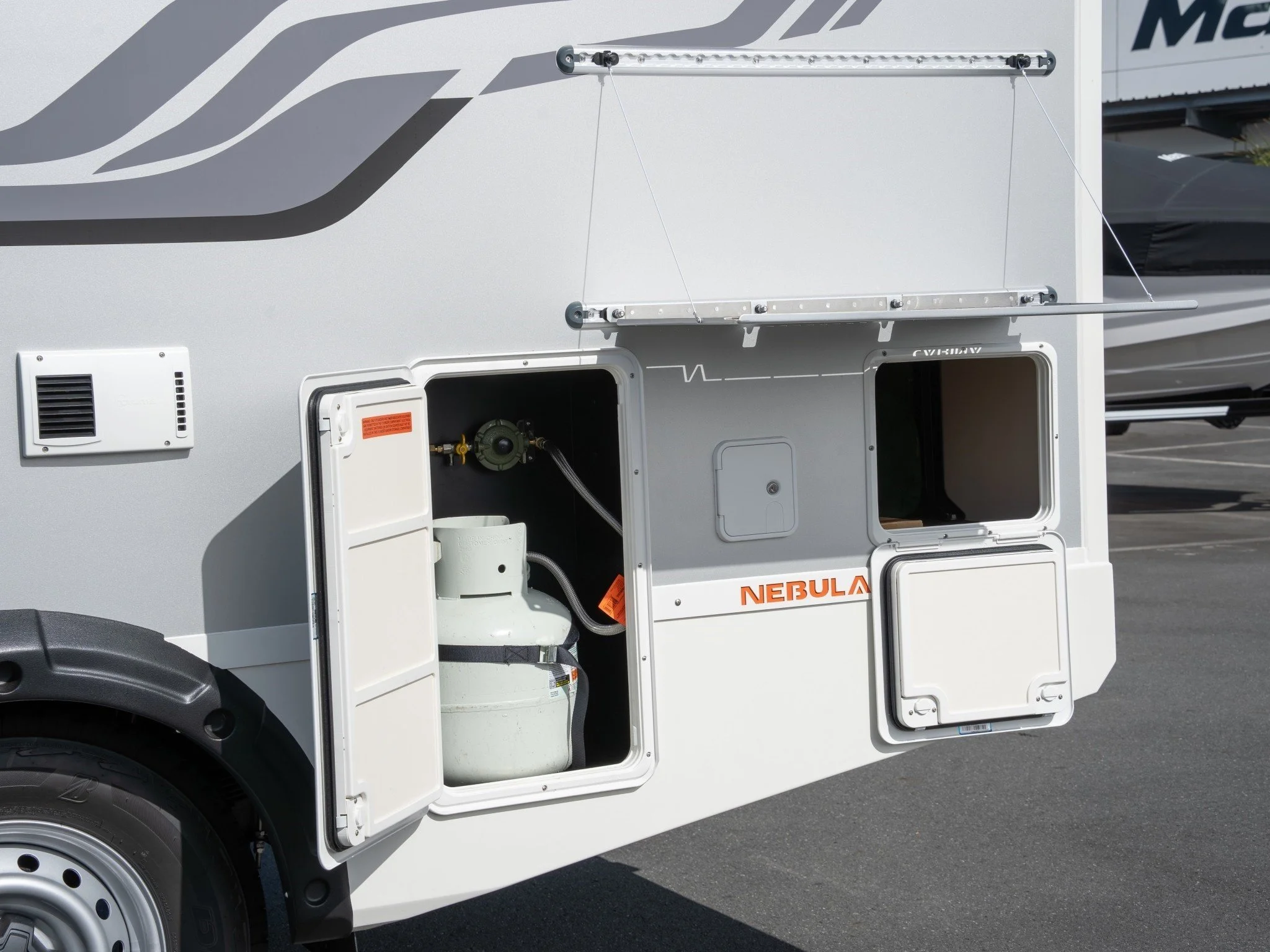

A section of a white RV with open service doors, revealing storage compartments and utility connections. The RV has a graphic design and the word Nebula written on it.

Built for New Zealand Conditions

The Nebula Carina is built on a Ford Ranger Next Gen Single Cab XL 4WD, available with a 3.0L or 2.0L engine and a 10-speed automatic transmission. Essence RV have kept the body lightweight through composite panel construction, which is what allows the upgraded 3500kg GVM without compromising handling or payload.

The cab carries the same safety and driver-assist features you'd expect in a new Ford Ranger: a 5-star Euro NCAP and ANCAP safety rating, adaptive cruise control, forward collision warning, lane keeping alert, and Apple CarPlay and Android Auto through the integrated touchscreen. It's a genuine daily-driveable vehicle, not just a weekend toy.

In the living area, big skylights and double-glazed windows keep things bright, with black-out blinds and fly screens fitted to every window, and soft-close drawers and cabinetry are built to handle corrugated back-roads without rattling loose.

Choose Your Engine: 2.0L or 3.0L V6

2.0L Single-Turbo Diesel

  • Standard engine
  • Paired with the Ranger's 10-speed automatic
  • An efficient, economical choice that suits relaxed touring and everyday driving

3.0L V6 Turbo-Diesel

  • Now available
  • Paired with the Ranger's 10-speed automatic
  • Noticeably more pulling power for hills, gravel and a fully loaded motorhome

Read our full breakdown of what changes with the V6 on our blog.

Enquire Now View Current Stock Call (07) 849 0083
Interior of a campervan or small RV showing a seating area with gray upholstered cushions, a small wooden table, windows with blinds, and a compact kitchen area with a black stove and a small countertop.

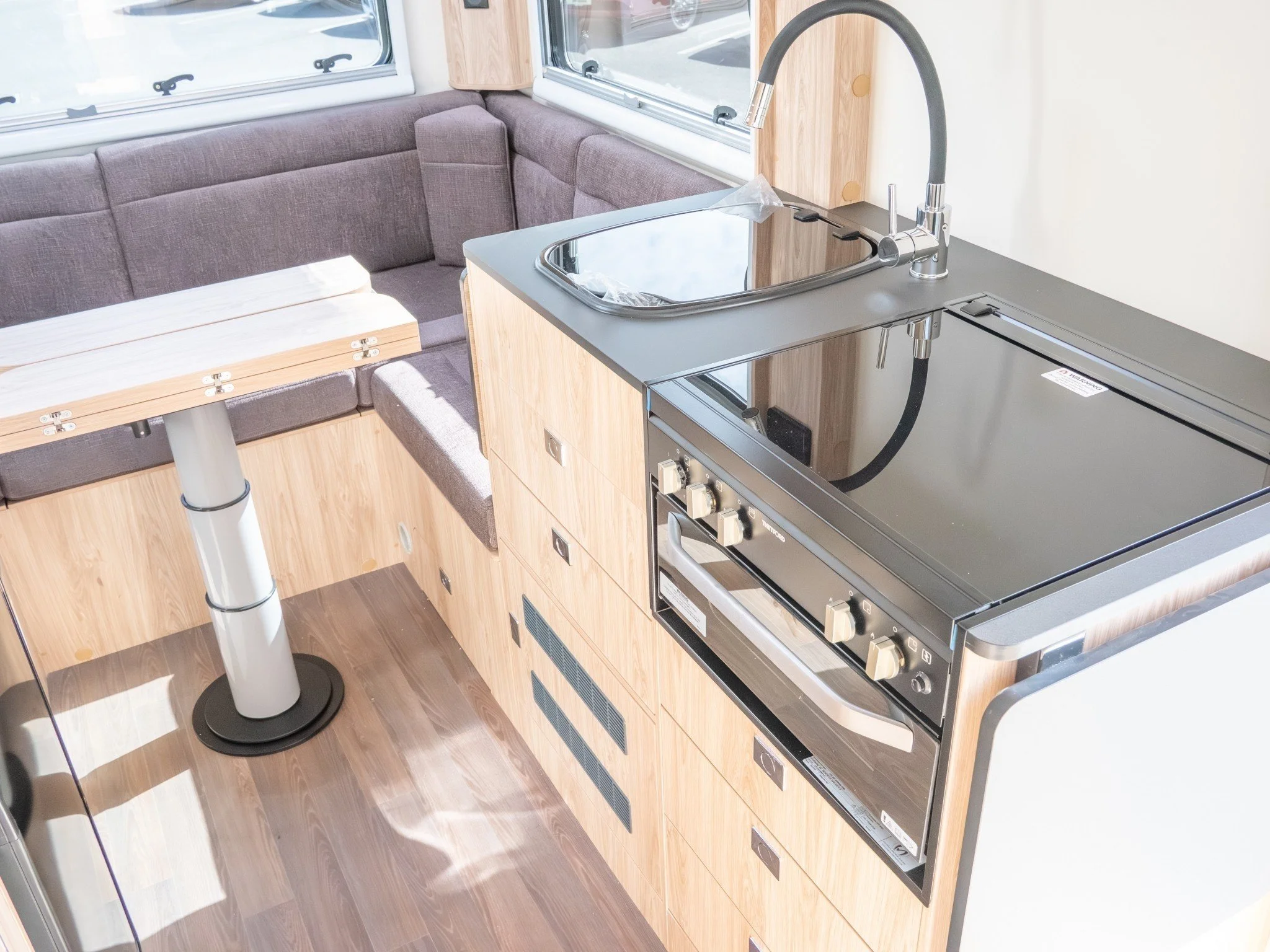

Interior of a camper van kitchen with a small stove, sink, wood cabinetry, a gray sofa, and windows showing outside parking.

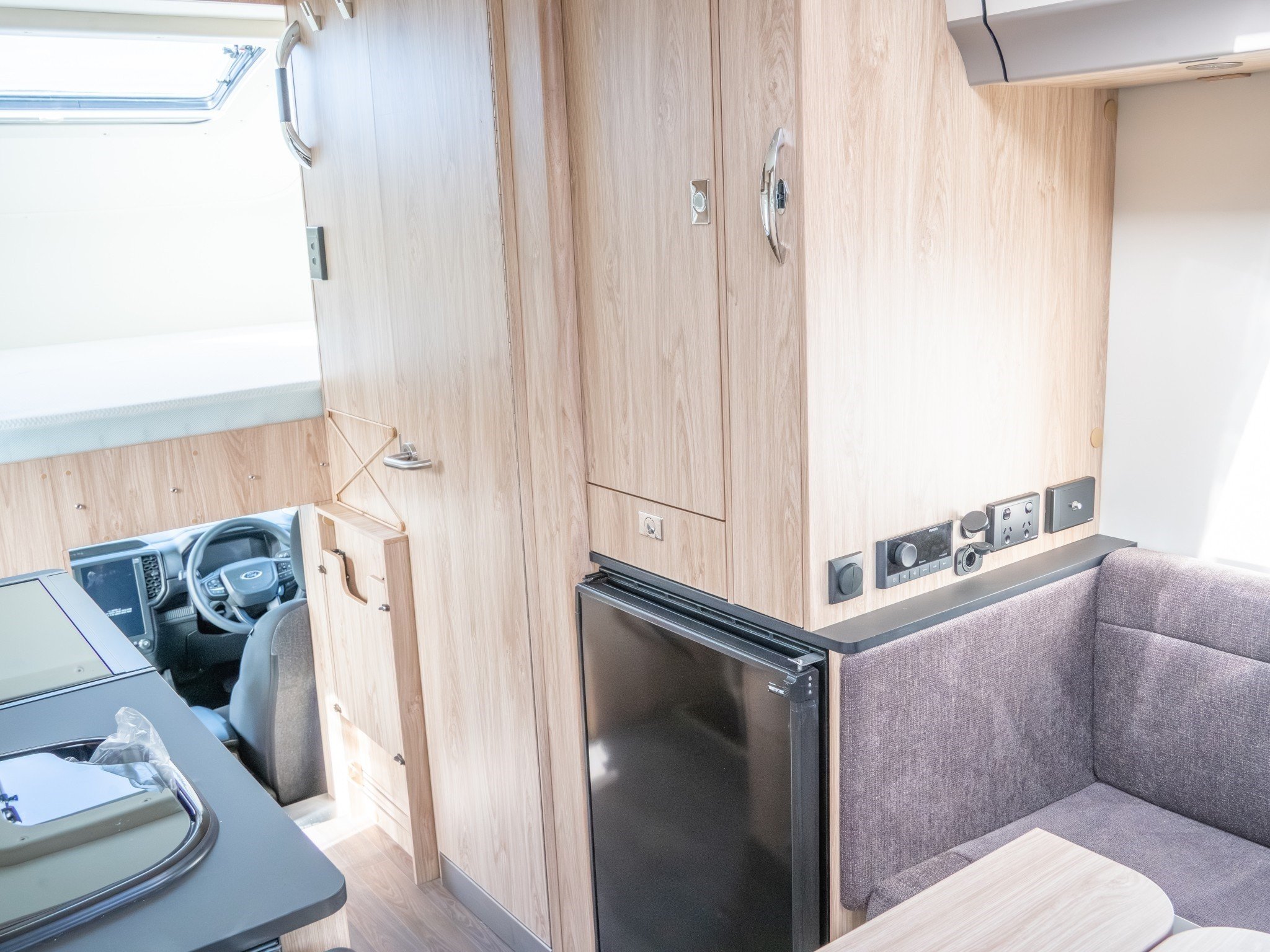

Interior of a tiny home or camper with wooden cabinets, a small black refrigerator, a gray couch, and various electrical outlets and switches on the wall.
Interior of a compact camper van or RV showing a wooden kitchen area with a small stove, sink, and overhead cabinets, next to a window with a curtain.

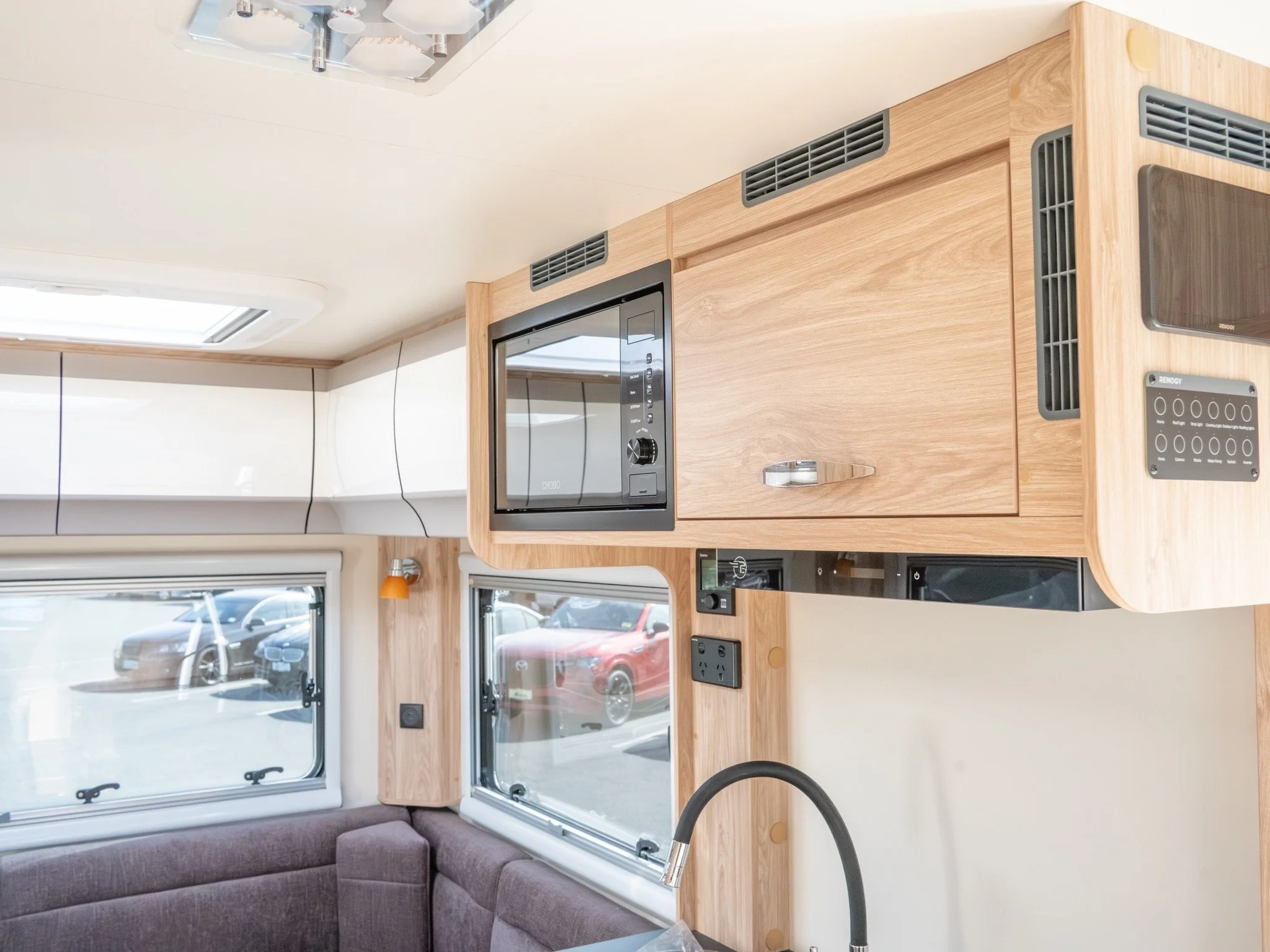

Interior of a tiny home or camper with wooden cabinetry, a microwave, a window, and a dark gray sofa.

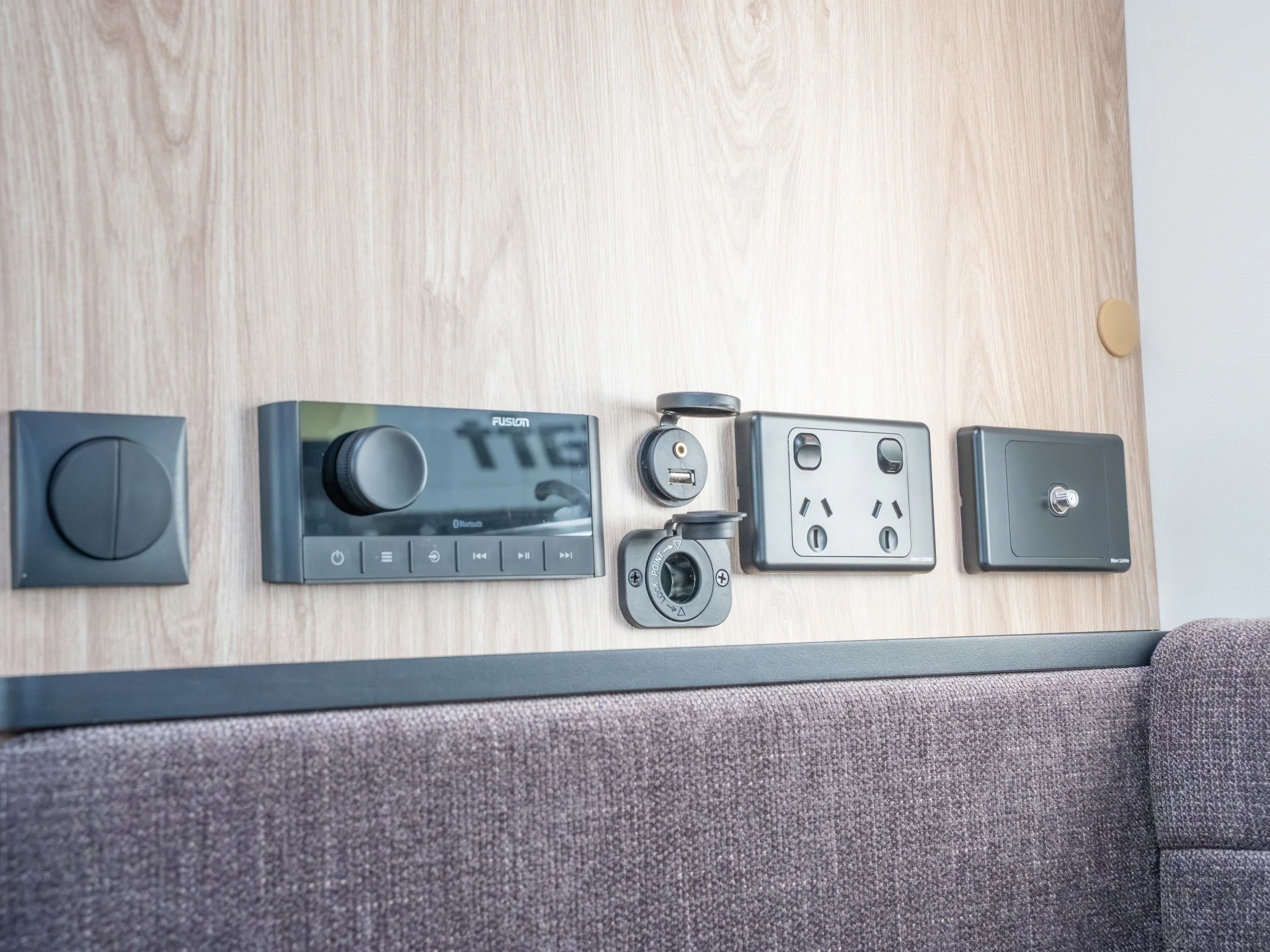

Electrical outlets and devices mounted on a wooden wall with carpeted surface below.

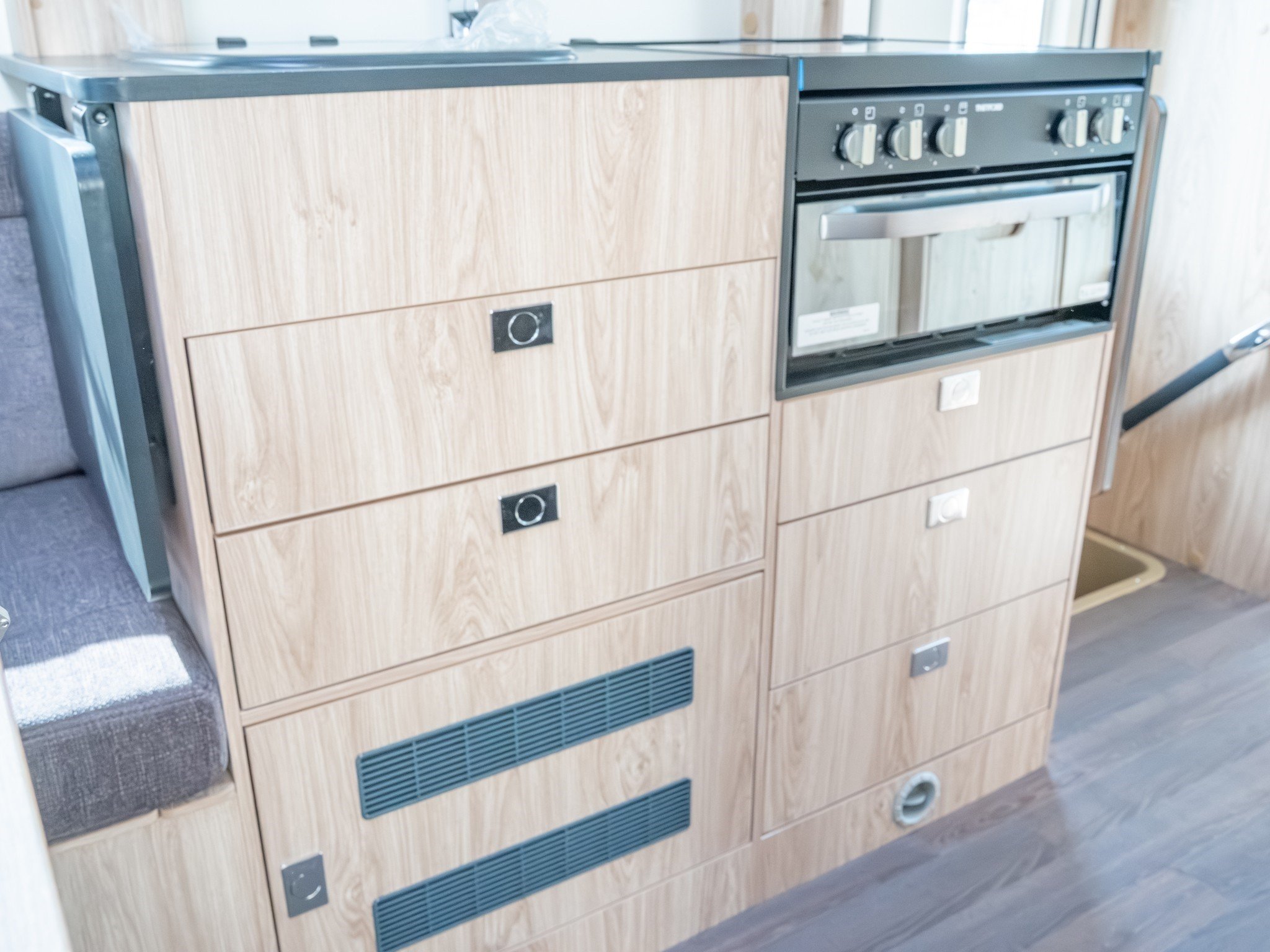

A built-in oven and a wooden storage cabinet in a kitchen or similar space.

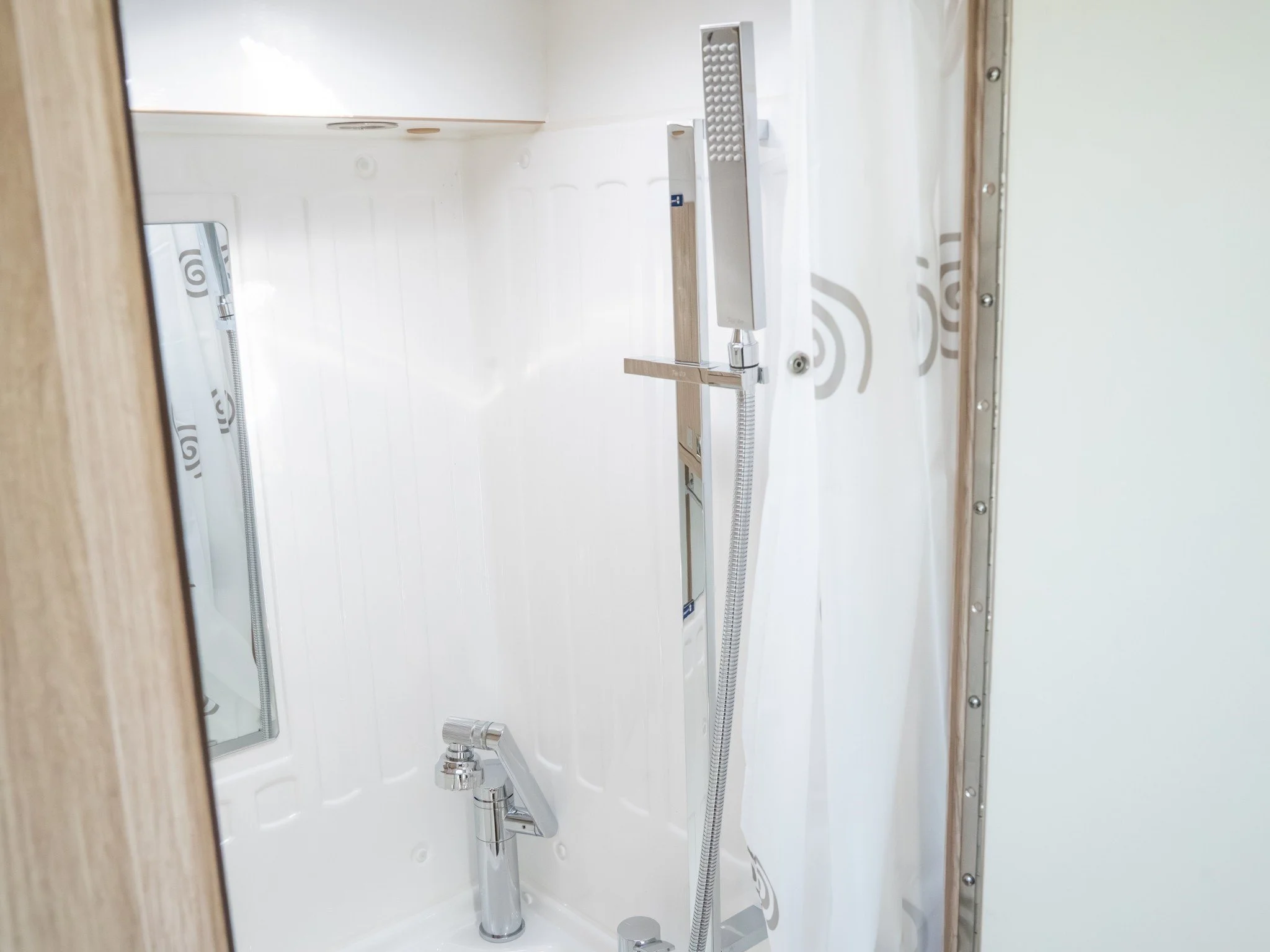

Interior of a shower with white walls, a handheld showerhead attached to a vertical bar, and a mirror on the left side.

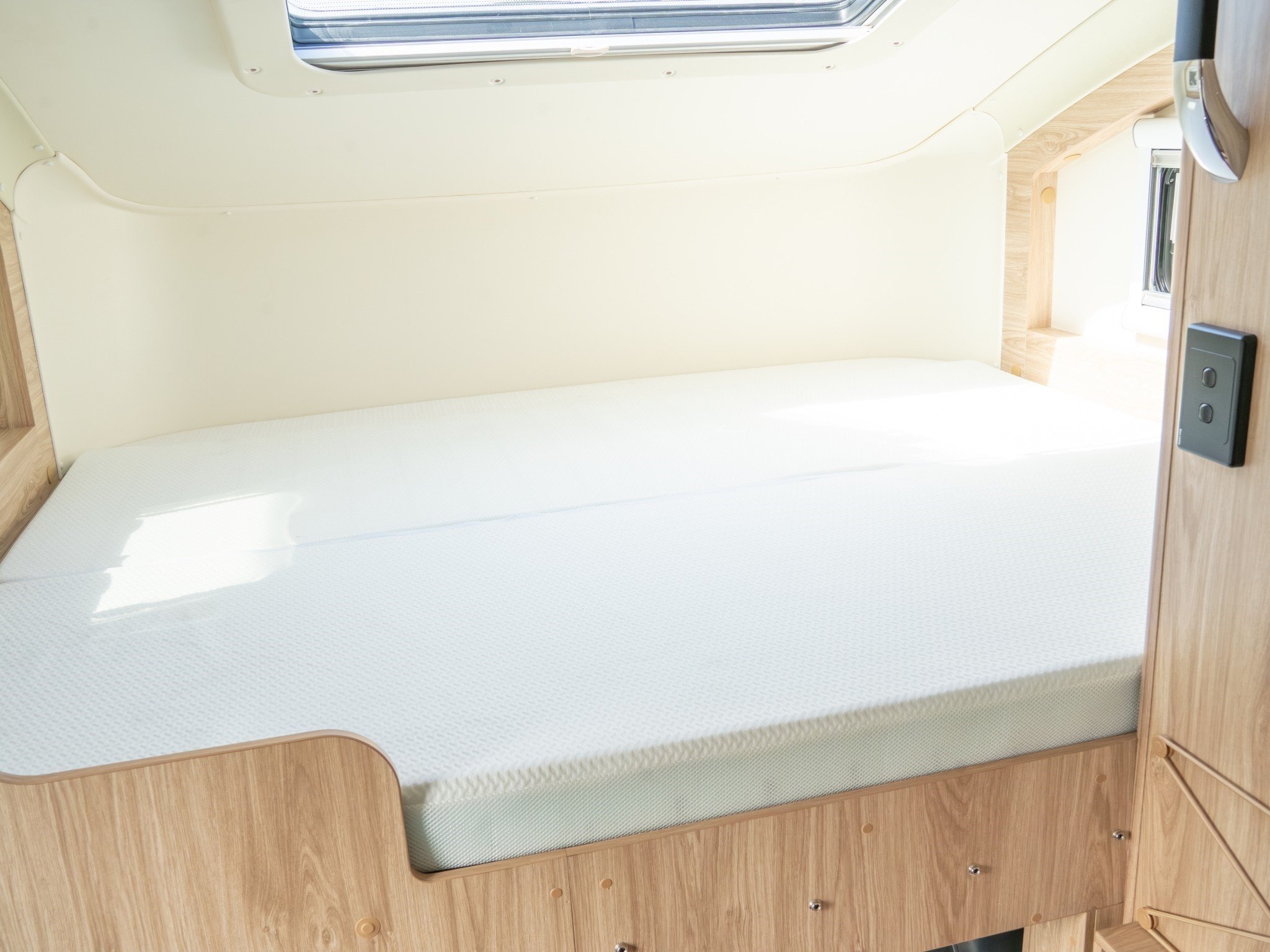

A bedsit with a neatly made mattress on a wooden frame, with a slide-out compartment underneath. There is a window at the head of the bed, with a ceiling hatch above, and a wooden side table to the right.

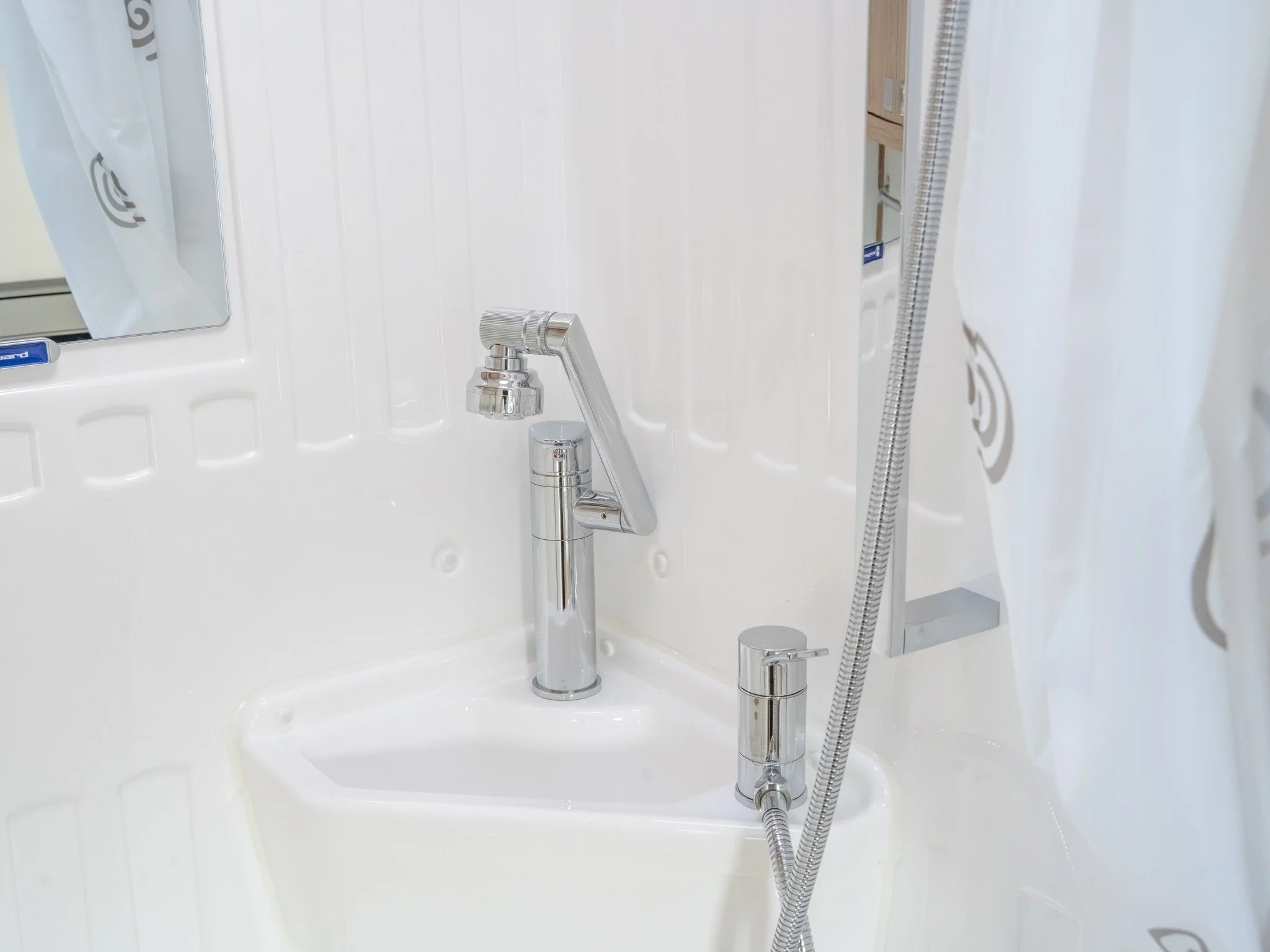

Close-up of a chrome faucet with a matching soap dispenser and a flexible shower hose in a white bathroom sink area.

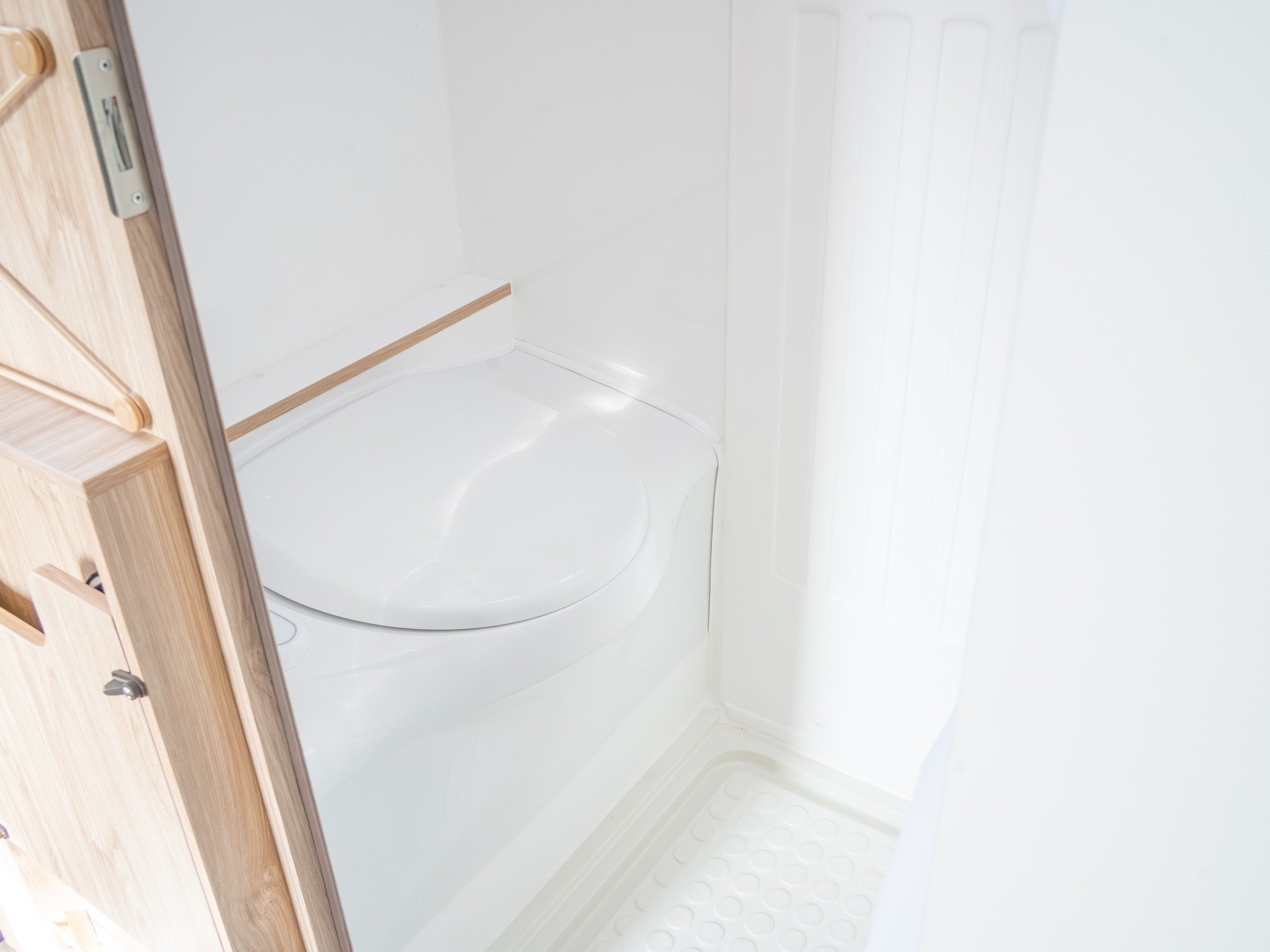

Interior view of a small shower stall with white walls, a textured white shower base, and a wooden door frame.

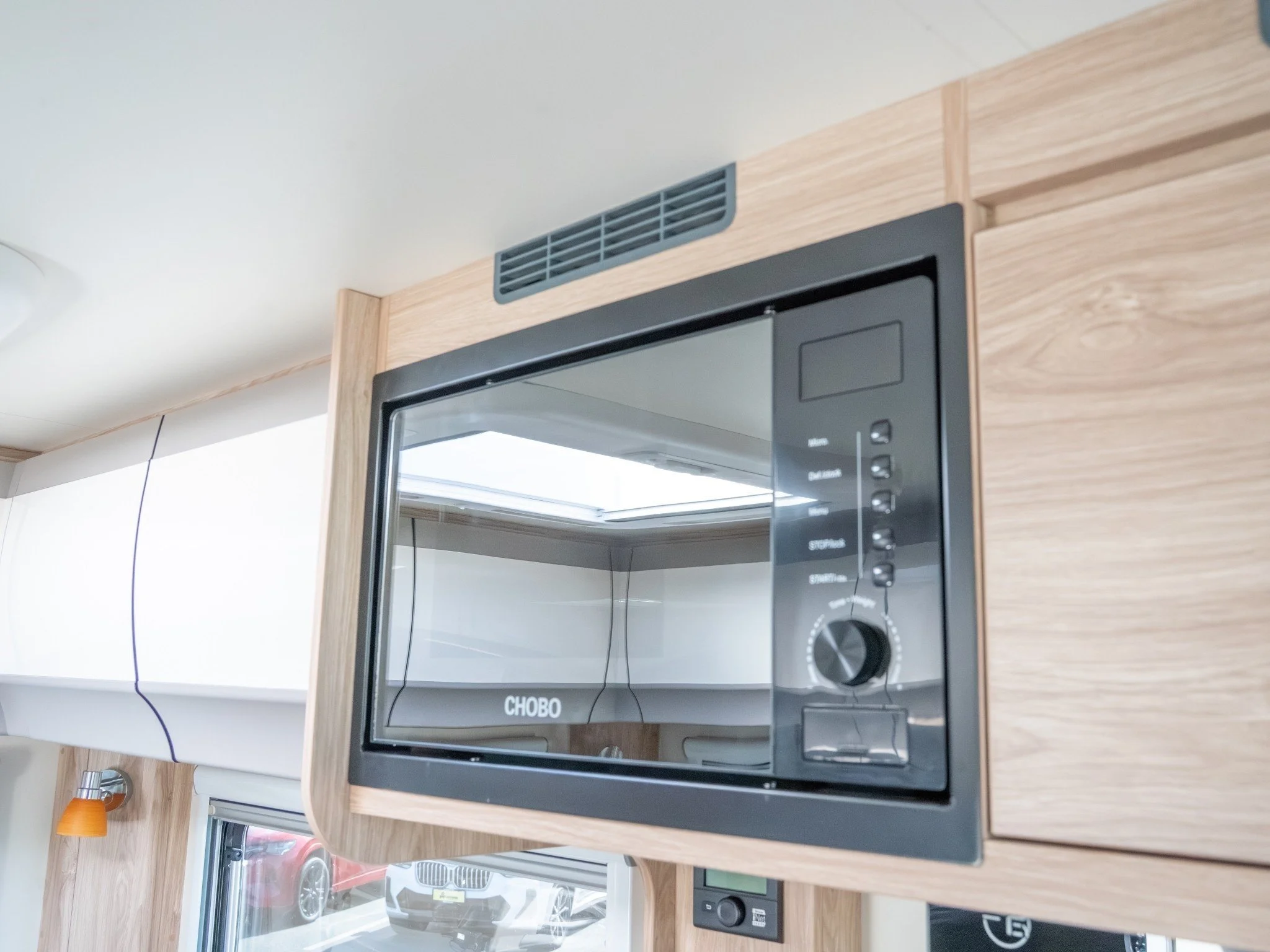

A kitchen with a black microwave oven built into a light wood cabinet, a white countertop, and a window reflecting outside vehicles.

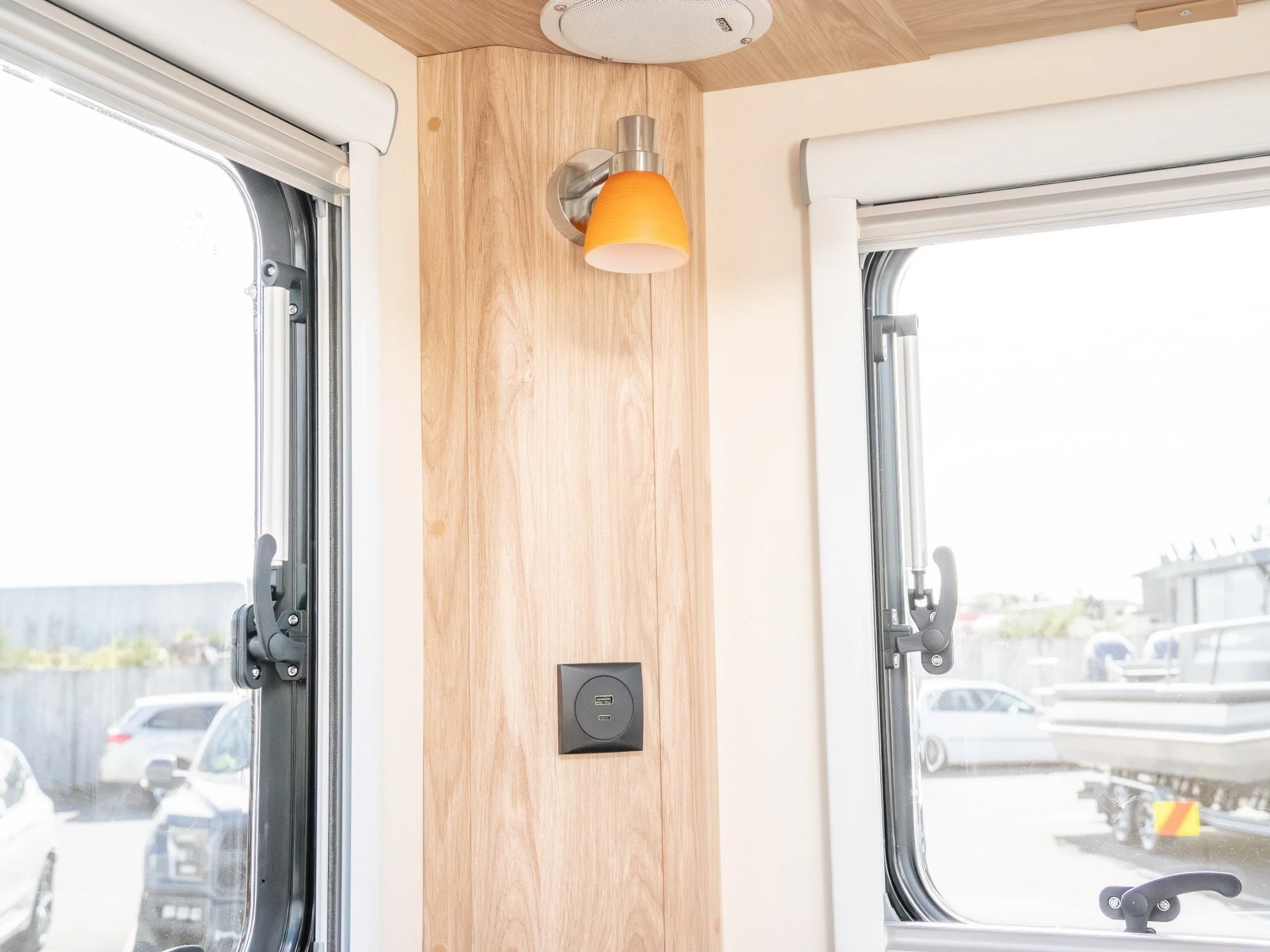

Close-up of a wooden wall panel inside a vehicle, featuring an orange lampshade light, a power outlet, and two window frames on each side with open blinds, showing a parking lot outside.

Nebula Carina Specifications

Chassis & Drivetrain

  • Ford Ranger Single Cab XL, 3.0L or 2.0L
  • 10-speed automatic, 4-wheel drive
  • Upgraded suspension to 3500kg GVM
  • Electric entrance step

Dimensions & Weight

  • Overall external length 6.0m
  • External width 2.1m, height 3.1m
  • Internal headheight 1.96m (1.92m with Starlight Headlining)
  • Maximum gross vehicle mass (GVM) 3500kg

Sleeping

  • Available as a 2 or 4 berth layout
  • Luton over-cab bed: 1.56m x 1.88m, with 830mm sitting height
  • Dinette bed conversion: 1.3m x 2.0m
  • 12V fan with remote, reading lights and privacy curtains over the Luton bed

Kitchen

  • Thetford sink and tap, Thetford 105L fridge/freezer
  • Thetford 4-burner gas cooktop and grill with glass lid
  • Fenix benchtops with two pop-up extensions
  • Stainless steel rangehood with lights
  • Pull-out pantry, soft-close drawers and overhead lockers

Bathroom

  • Hot and cold shower on a slide rail
  • Thetford C402 bench-style cassette toilet
  • Basin, vanity cabinet and drying rack
  • Two-way turbo vent with remote control

Power, Water & Heating

  • 200Ah lithium battery, 2000W inverter, 400W solar
  • 94L fresh water, 84L grey water tank
  • Truma 6kW diesel combi heating and hot water
  • 6kg LPG bottle for cooking only

Options & Upgrades

Available on top of the standard specification above. Ask us which options are fitted to our current stock, or what can be added to an order.

Exterior & Touring

  • Awning
  • Alloy wheels
  • Roof racks
  • Bonnet protector
  • 2000kg towbar
  • Satellite / Starlink fitting

Interior & Living

  • 24" TV
  • CCTV
  • Leather dinette seating
  • Microwave
  • Waterless toilet
  • All-electric, no-gas package

Warranty & Service

The Nebula Carina is backed by Essence RV's manufacturer warranty and service network, and 4Guys Autobarn is your local Waikato point of contact for servicing and support. Full warranty terms and coverage are available on Essence RV's warranty and service page, or get in touch and we'll talk you through what's covered.

Enquire Now View Current Stock Call (07) 849 0083

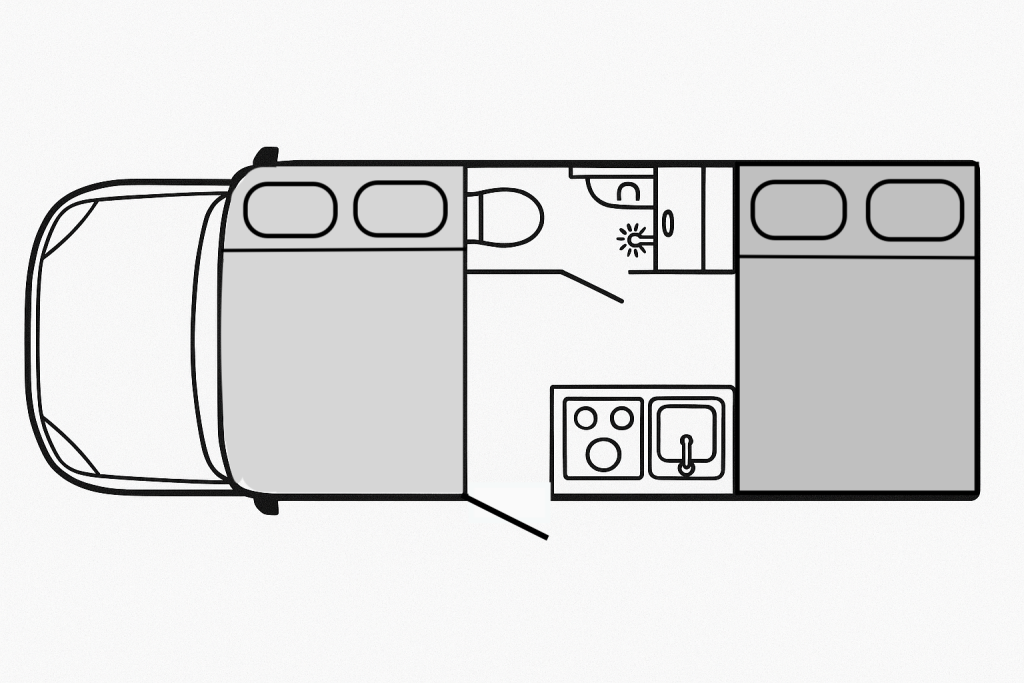

Top-down schematic of a camper van interior with a bed, kitchen area, and bathroom.

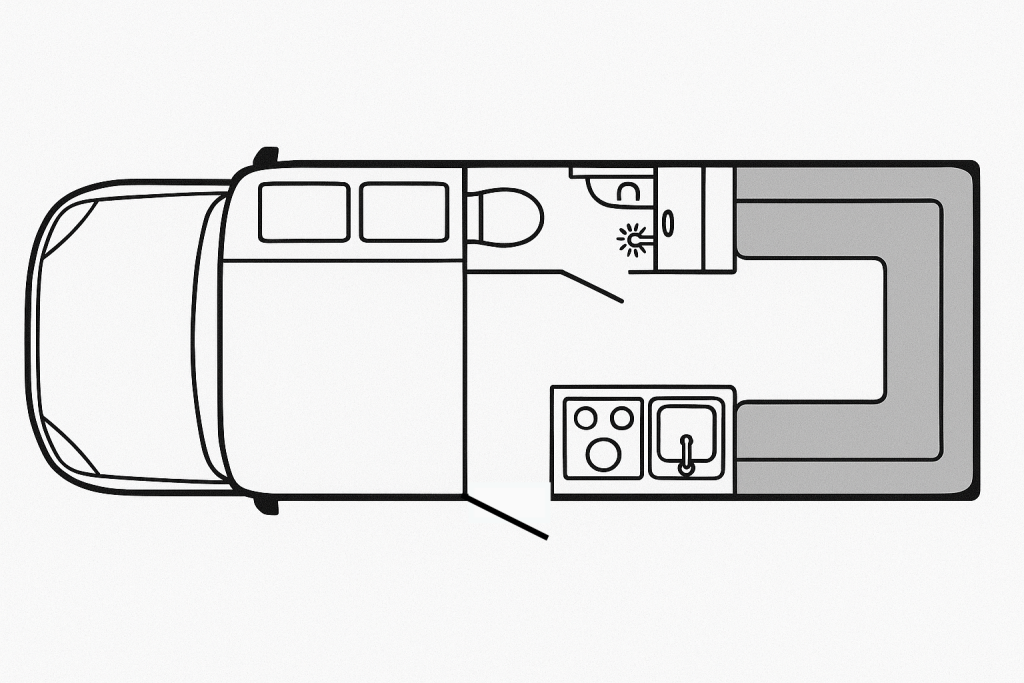

Top-down floor plan of a camper van showing a seating area, kitchen with stove and sink, bathroom with toilet and shower, and sleeping area with bed.

Looking at trading in your current motorhome?

Fill out the form below and we will have a look

Nebula Carina FAQs

  • Yes. It's certified self-contained, with onboard fresh and grey water tanks and a Thetford cassette toilet, giving you genuine time off-grid before you need to top up water or empty waste.
  • The Nebula Carina is available as a 2 or 4 berth layout. The Luton bed over the cab sleeps two, and the rear dinette converts into a second bed for the 4-berth option.
  • Yes. It's built on a Ford Ranger Next Gen Single Cab XL 4WD with hi/low range, diff lock and reinforced suspension, so it's capable well beyond sealed roads.
  • Both are built on the same Ford Ranger 4x4 chassis with a 10-speed automatic. The standard 2.0L single-turbo diesel is efficient and suits relaxed touring, while the 3.0L V6 turbo-diesel gives noticeably more pulling power for hills and a fully loaded motorhome. Read the full comparison on our blog.
  • A 200Ah lithium battery paired with a 2000W inverter and 400W of solar panels, plus a Truma diesel combi system for heating and hot water, so you're not reliant on a powered site.
  • The Nebula Carina is backed by Essence RV's manufacturer warranty, with 4Guys Autobarn as your local Waikato service contact. Full terms are on Essence RV's warranty and service page.
  • Pricing depends on the engine option, layout and any extras fitted. Get in touch for current pricing on our stock.
  • Yes. Finance is available through providers including UDC Finance, Finance Now, Marac Car Loans and MTF. See our car finance page or get in touch to discuss terms.
  • Yes. View our current Nebula Carina stock here, updated as units arrive and sell.
  • Yes. Visit us 7 days a week at 20 Arthur Porter Drive, Hamilton, call (07) 849 0083, or email us to arrange a time or place an order.
